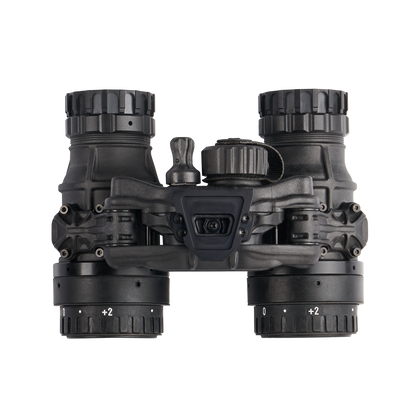

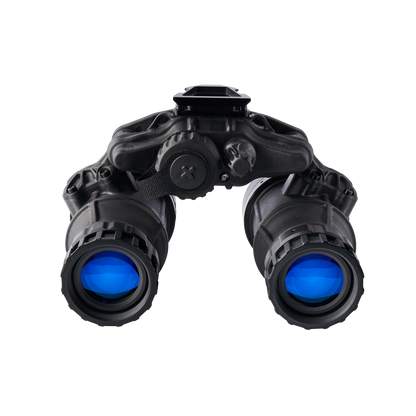

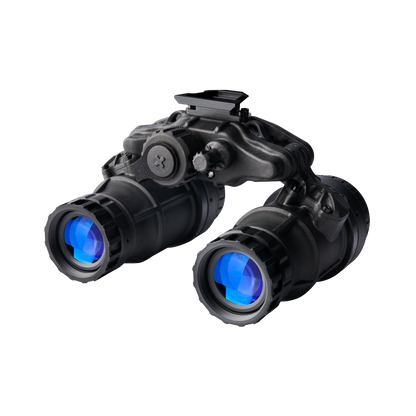

DTNVS-MG - Up to 3000 FOM Gen 3 WP w/ Manual Gain & IR Illuminator - 35+ Hour Battery Life

DTNVS-MG: High-Definition Gen 3 White Phosphor with Adjustable Brightness and Long Battery Life

• The ACTinBlack DTNVS-MG is a Mil-Spec, field-proven dual-tube night vision system designed for elite operators who need the lightest possible housing without losing manual control. This binocular supports high-stakes missions by combining a rugged, waterproof frame with advanced features that allow you to adapt your vision to rapidly changing light levels.
• High-Definition Gen 3 White Phosphor with Up to 3000 FOM: These L3Harris and Elbit intensifier tubes provide incredible, high-contrast images in black and white. With a Figure of Merit (FOM) reaching as high as 3000, you get a clean and sharp view that lets you spot threats in the darkest conditions.

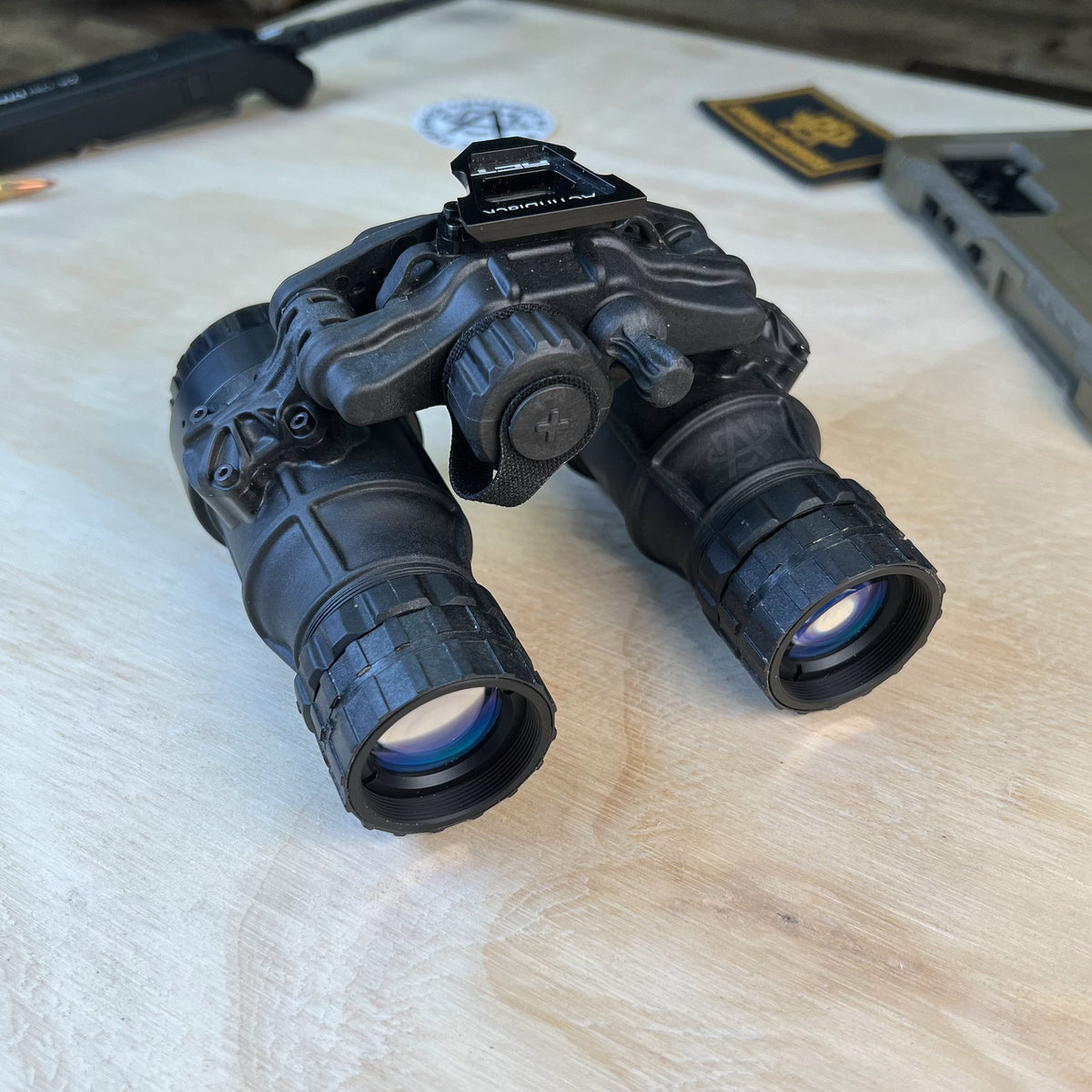

• Tactical Control with Manual Gain Adjustment: A built-in rotation and click switch lets you manually adjust how bright the image appears in each tube. This allows you to dim the brightness in urban areas to prevent eye strain or boost it in complete darkness for maximum situational awareness.
• Rapid Positioning with Interpupillary (IPD) Stops: The optional IPD module uses direct screw inserts to lock your eyepieces in the perfect spot for your eyes. When you fold the pods down from the helmet, they instantly return to your preset alignment so you can focus on the mission instead of adjusting your gear.
• 35+ Hours of Operation on 1 CR123 Battery: A single standard battery provides over 25 hours of continuous runtime in standard use. Because each pod automatically shuts off when flipped up to the side, most operators report up to 35 hours of life, ensuring your gear stays powered through multi-day operations.

DTNVS-MG Review

What are some common accessories to add to the DTNVS mg?

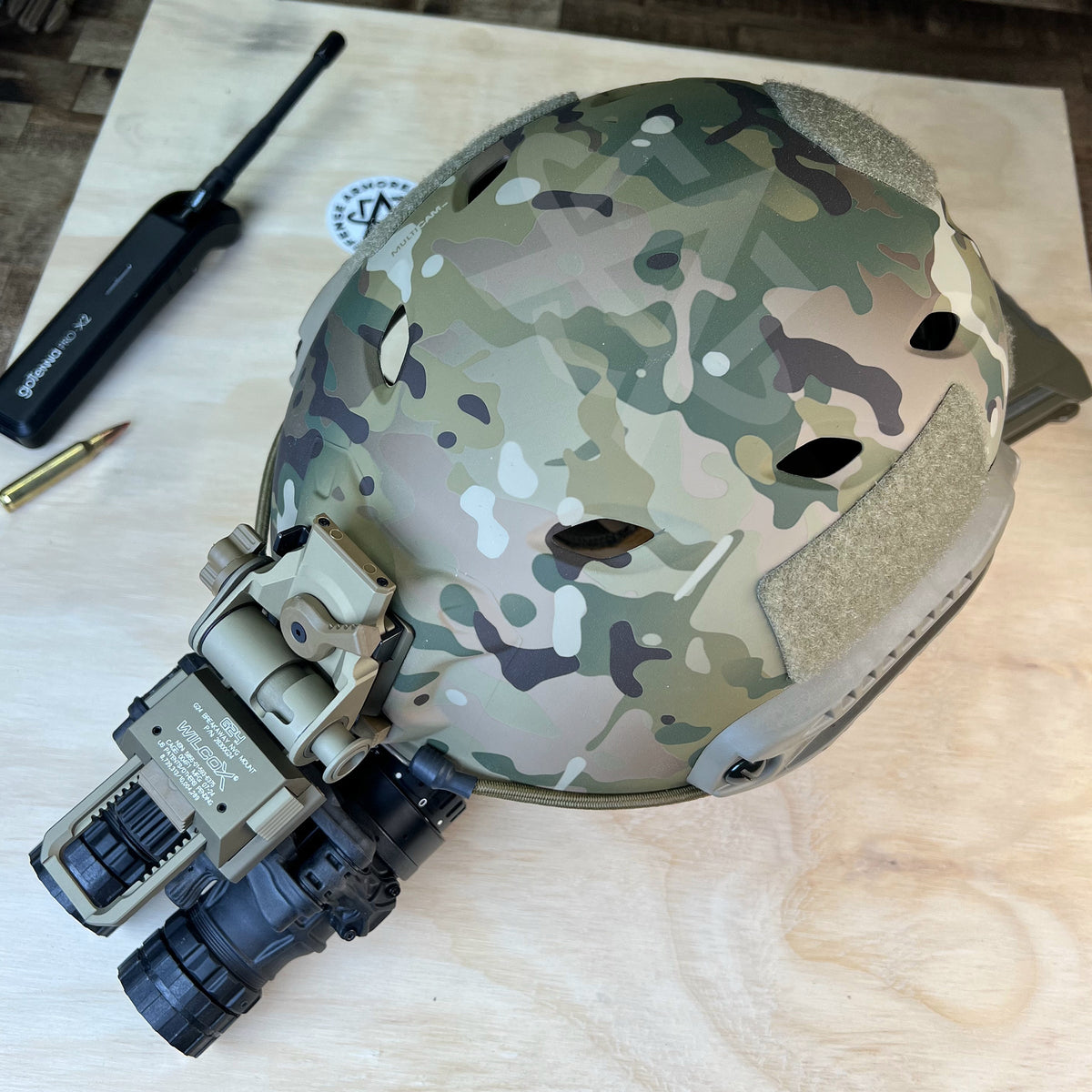

Helmet Platforms for DTNVS-MG Integration

• Galvion Caiman Ballistic: Provides a stable, protective platform designed to support night vision devices like the DTNBS MG, ensuring a secure fit during dynamic movement.
• Ops-Core FAST SF Gen 2: A lightweight helmet system with a high-cut design, offering a seamless and stable mounting base for the DTNVS MG while maximizing compatibility with communications headsets.
• Team Wendy Exfil SL: Features a rigid, lightweight shell that serves as a secure foundation for the act in black DTNVS, known for its comfortable fit and impact protection during extended use.

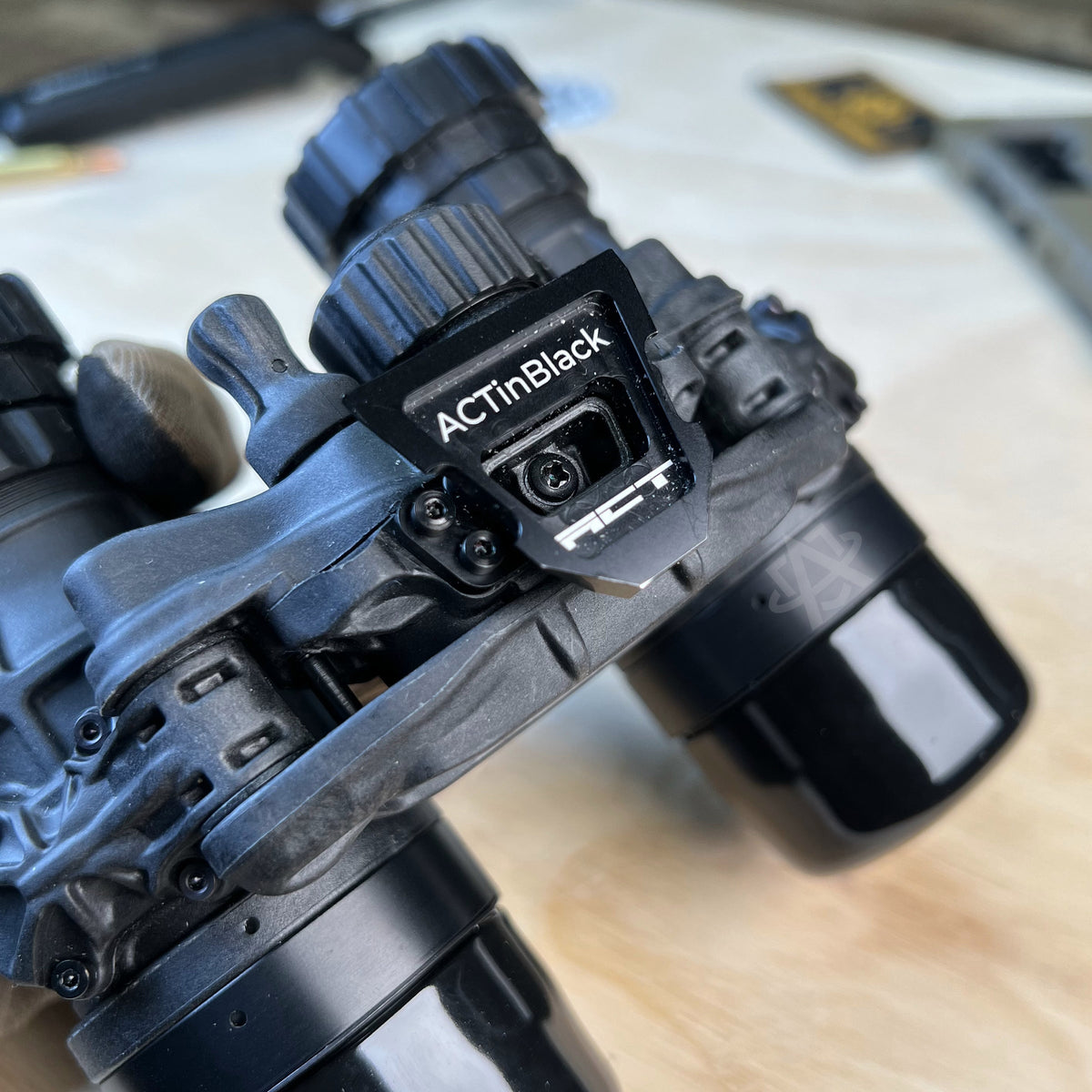

Mounting Interface for the ACT DTNVS-MG

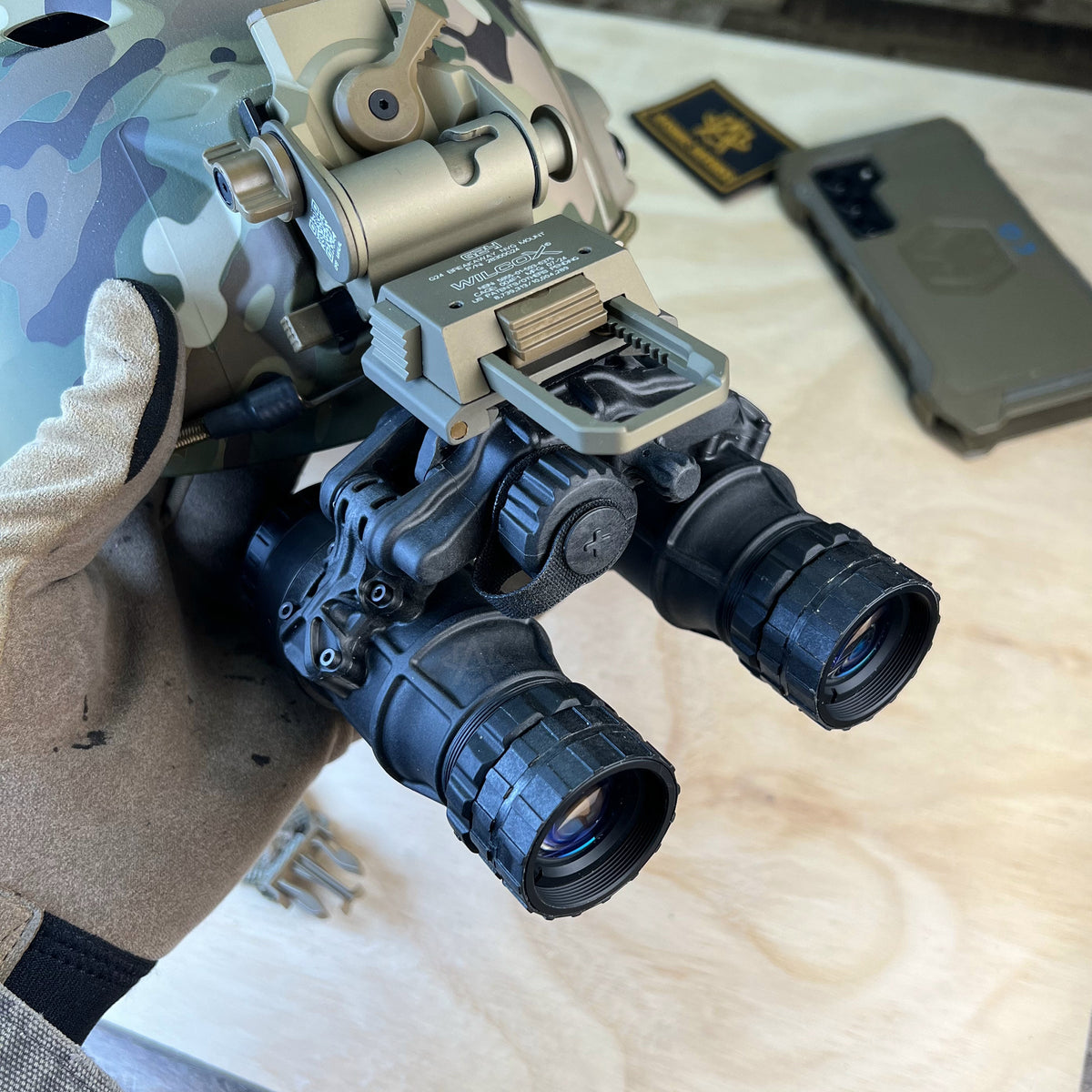

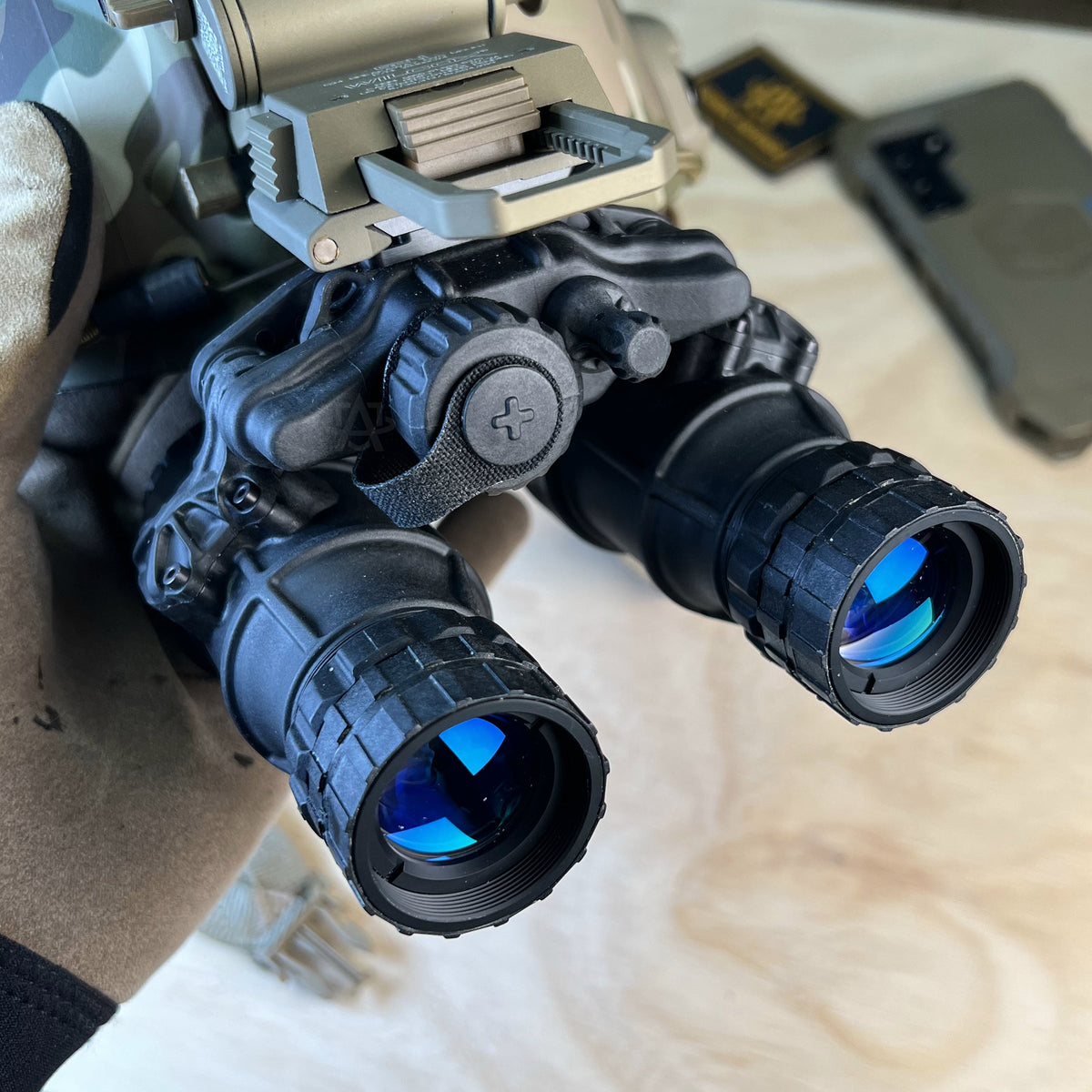

• Wilcox G24: The standard mounting arm that connects the act in black DTNVS MG for sale to the helmet shroud, offering a breakaway feature for operator safety and precise vertical, tilt, and fore/aft adjustments for perfect eye alignment.

System Balancing & Performance Enhancement

• Ops Core Counterweight: Attaches to the rear of the helmet to offset the forward weight of the Dual Tube Night Vision System Manual Gain, improving operator comfort and reducing neck strain during long periods of use.
• Team Wendy Counterweight: A customizable weight system that integrates with the helmet to perfectly balance the act in black DTNVS Manual Gain, enhancing stability and reducing user fatigue.
• Night Vision External Battery Packs: While the Act in Black DTNVS-mg night vision goggles eliminate the standard external battery port to utilize internal CR123A batteries for up to 35 hours of runtime, supplemental power systems can be integrated into the broader headborne setup for extended mission profiles.

ACT in Black Dual Tube Night Vision System with Manual Gain Features & Specifications

The Act In Black DTNVS-MG – Dual Tube Manual Gain Night Vision Goggle provides operators with total control over their environment by integrating fully adjustable manual gain into a proven, lightweight dual-tube system. This key feature allows you to manually adjust the intensifier tube's brightness, ensuring the clearest image and reducing eye fatigue across any light level, from complete darkness to urban settings. Built on the reliable and rugged DTNVS platform, it features a low-profile design that reduces neck strain during long missions and incorporates advanced functions like individual pod shut-off to extend battery life.

Key Features

• Manual Gain Control: This feature allows the user to adjust the intensification level of the DTNVS manual gain to match ambient light, providing a clear image while reducing eye strain.
• Independent Monocular Flip-Up: Each optical pod on the act in black DTNVS can be individually flipped to the side and automatically shuts off, saving power and allowing for open-eye use without helmet backsplash.
• High-Performance Tube Options: You can choose from several high-definition Gen 3 White Phosphor tubes for your DTNVS mg, including L3Harris Filmless White Supergain, L3Harris Filmless White, and Elbit Thin Film White.
• Extended Battery Life: A single CR123 battery delivers over 25 hours of continuous operation for the ACT in Black Dual Tube Night Vision System Manual Gain, with many users reporting up to 35 hours due to the power-saving pod shut-off feature.
• Built-in IR Illuminator: The DTNVS-MG – (Dual Tube Night Vision System, Manual Gain) includes an integrated infrared illuminator for close-quarter operations, featuring an IR-On indicator visible in your field of view.
• Rugged and Waterproof Housing: The unit exceeds MIL-STD-810G standards and is submersible to 66 feet (20 meters) for 2 hours, ensuring reliability in the harshest environments.

Specifications

• Weight: Minimum of 445 g (15.6 oz).
• Dimensions: 76 x 105 x 111 mm (2.9 x 4.1 x 4.3 inches).
• Magnification: 1x.
• Field of View (FOV): 40°.
• Objective Lens: 27mm, f/1.2.
• Focus Range: 9.8 inches (0.25 m) to infinity.
• Diopter Adjustment: +2 to -6 dpt.
• Power Source: (1) CR123 Size Battery.
• Waterproof Rating: 20 meters (66 feet) for 2 hours.
• Standards: MIL-STD-810G.

What's in the box of the DTNVS mg?

• (1) DTNVS-MG Night Vision System
• (1) Pelican-style hard case
• (1) Set of spec sheets for your specific unit


ACT DTNVS-MG FAQs

What is manual gain and why do I need it?

Manual gain lets you control how bright the picture is on your DTNVS Manual Gain by turning a knob. This helps you get the clearest possible view in different light levels. It is a new feature that handles all the device functions from the main switch.

What is the built-in IR illuminator for?

The IR illuminator is a special flashlight that only night vision can see. It helps you see in complete darkness when you are in small or close spaces. When it is on, you will see a light indicator in your view so you know it is working.

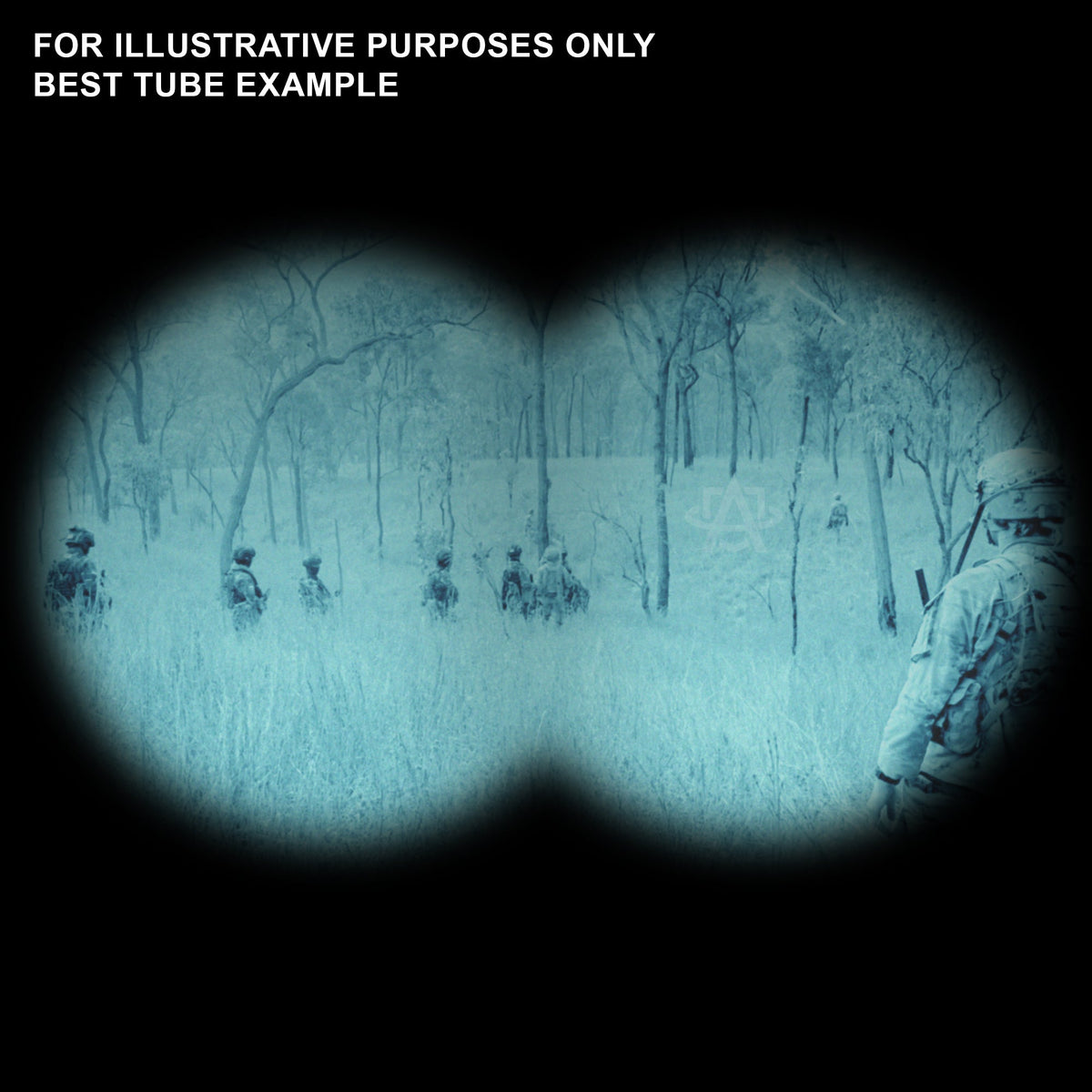

What does Gen 3 White Phosphor mean?

 Gen 3 is the standard for high-performance night vision used by the military. White Phosphor means the image you see will be in black and white. Many people find this easier on the eyes than the old green color.

What is SNR?

 SNR stands for Signal-to-Noise Ratio. It tells you how clean the image is compared to the "static" you might see in the dark. A higher number means a clearer picture with less fuzziness

What is FOM and why does it matter?

FOM stands for "Figure of Merit." It is a number that tells you the overall performance level of the night vision tube. A higher FOM generally means the image will be cleaner and sharper.

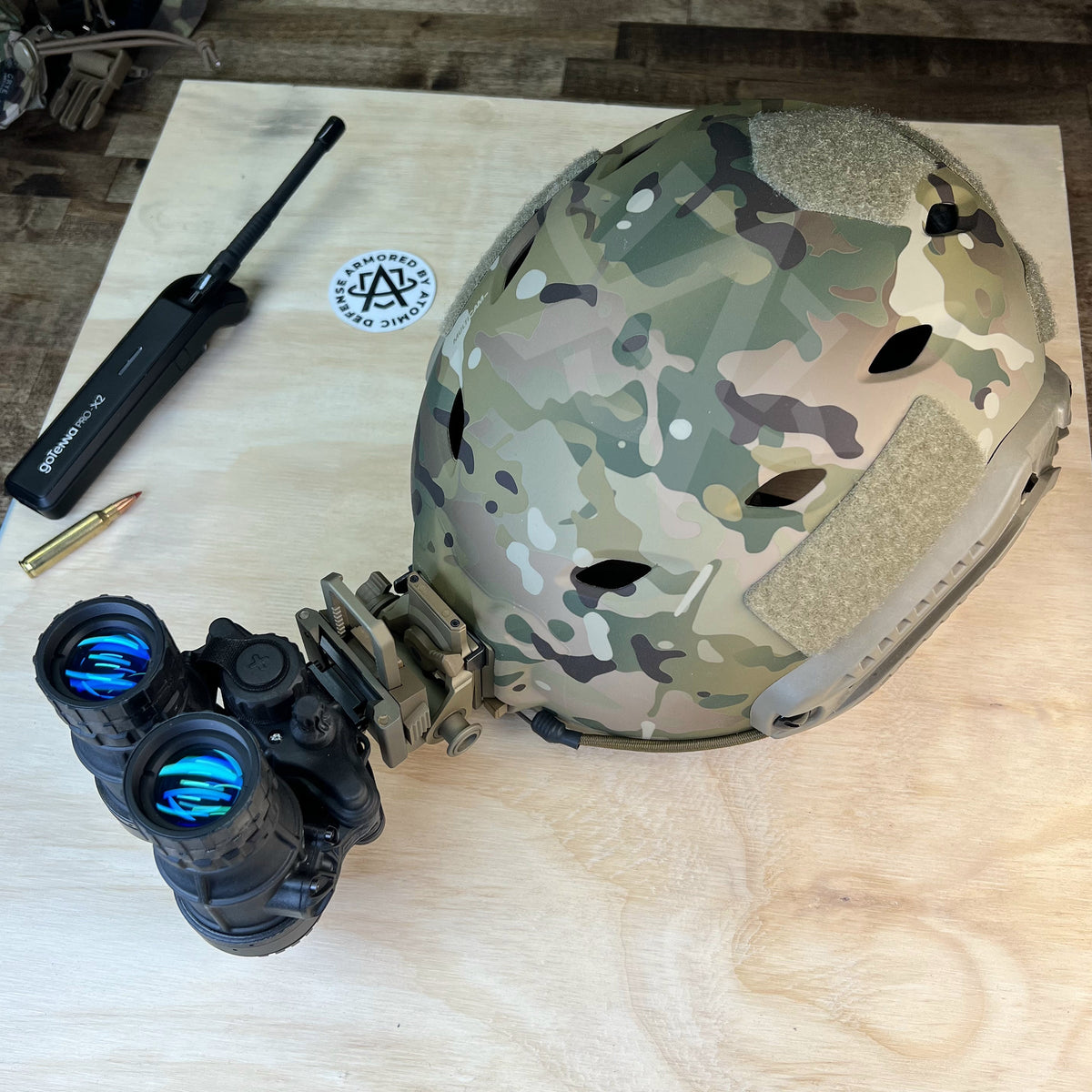

How does the flip-up shut-off work?

 You can flip each eyepiece up to the side one at a time, and it will turn off automatically. This saves battery life and keeps light from reflecting off your face onto your helmet. A single battery can last up to 35 hours because of this feature.

Is the act in black DTNVS waterproof?

Yes, the housing is waterproof and can be underwater at 66 feet for two hours. It is built to meet tough military standards so you can use it in any weather.

How do I know my DTNVS MG is built correctly?

Every unit is put through precision alignment and nitrogen purging on professional Hoffman ANV-126A equipment. This process provides a clear image without eye strain so the gear is ready for real-world use.

How can I get different housing colors or special lenses?

You can order your ACT in Black Dual Tube Night Vision System Manual Gain in different colors to match your other gear. We also offer high-end lenses like the RPO 4.0 for a lighter setup or the Boomslang 50-degree lenses for a wider view. For these special orders, you will need to submit a request for a quote here.

Why is it not recommended to use rechargeable batteries in the DTNBS mg?

Rechargeable batteries are prone to leaking, which can cause significant damage to the sensitive electronics and parts inside. This leakage can result in malfunctions or even complete failure of the device.

What type of batteries should I use for my DTNVS mg?

It is highly recommended to use lithium batteries for night vision goggles. Lithium batteries are more stable and less likely to leak, which helps your gear last longer and perform at its best.

What should I do if my DTNVS manual gain does not turn on?

If your device does not turn on, follow these steps:

• Check the Battery Orientation: Ensure that the batteries are put in the right way. The direction must match the symbols shown on the device.
• Replace with New Batteries: If the batteries are in correctly but it still will not turn on, try a brand new set of lithium batteries. Often, the issue is simply that the old batteries are empty.

Where can I purchase the DTNVS mg for sale?

 You can find the ACT in Black DTNVS-MG for sale directly through Atomic Defense. As an authorized dealer for ACT in Black, Atomic Defense provides top-quality, genuine products backed by the manufacturer's warranty. When looking for an Act in Black DTNVS MG for sale, purchasing here ensures you receive expert guidance and reliable customer support for your high-performance night vision equipment.
